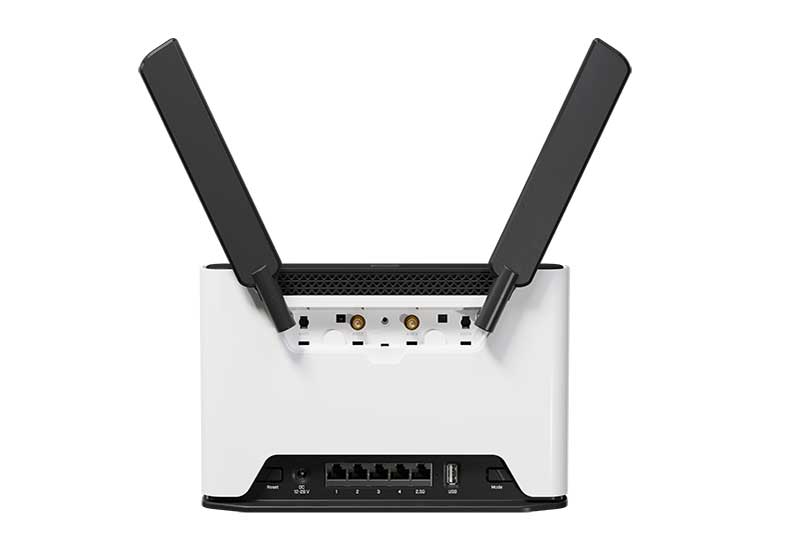

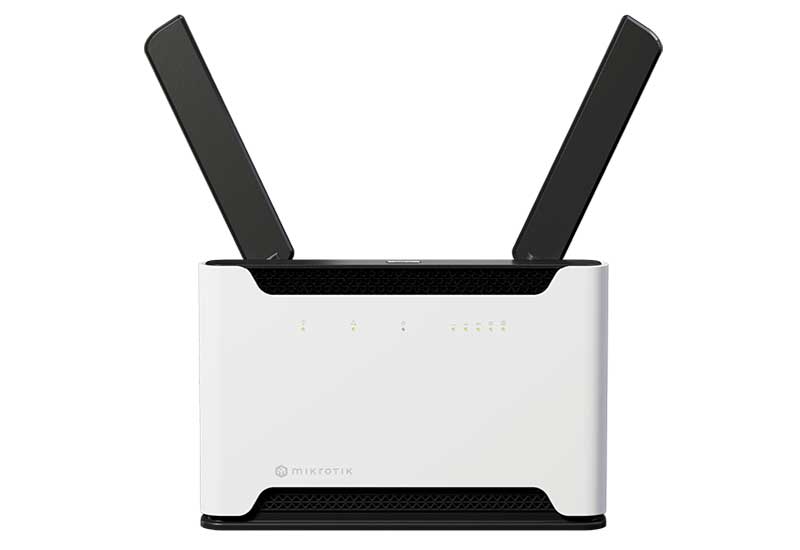

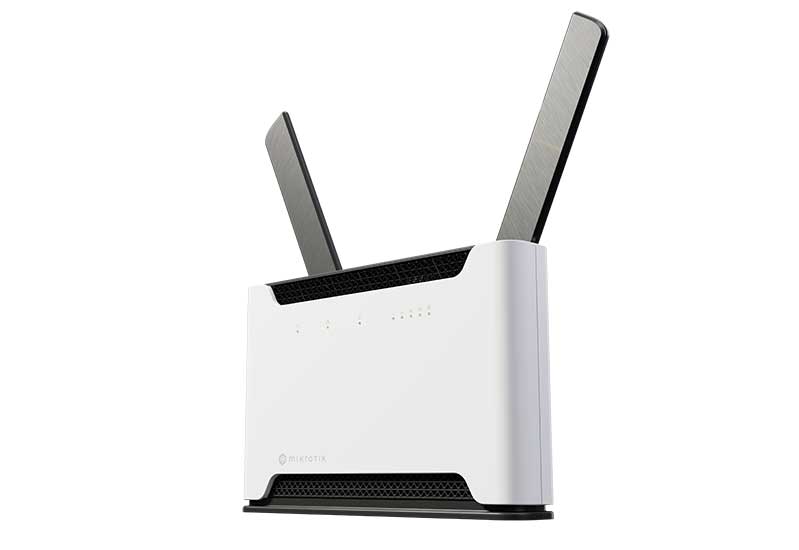

MikroTik Chateau PRO ax router Wi-Fi 6 AX3600 5x GE, USB, 1x PoE OUT

Διαθέσιμα: 1
A Wi-Fi 6 home access point for the advanced users – it comes with an exceptionally powerful wireless system and a matching CPU.
Τιμή πώλησης 220,72 €
Τιμή πώλησης χωρίς φόρο 178,00 €
Ποσό Φ.Π.Α. 42,72 €
Chateau_Cat18_1_800x5503
Chateau_Cat18_2_800x5501
Chateau_Cat18_3_800x5507
Chateau_Cat18_4_800x5504
Chateau_Cat18_5_800x5503
Περιγραφή

Designed with professional users in mind, the Chateau PRO ax Wi-Fi 6 home access point is engineered to squeeze out maximum performance, handling more traffic than ever before. With its unstoppable quad-core ARM CPU running at 2.2 GHz and our latest cutting-edge wireless chip, Chateau PRO ax leverages 4 spatial streams to achieve double the data rate of the usual dual-chain devices, ensuring that your network is always fast, reliable, and ready to support even the most demanding tasks. Remember – you will need a device that supports 4 spatial streams on the other side of the connection to fully utilize the Chateau PRO ax.

With 5x Gigabit Ethernet ports and a USB 3.0 port, you can transform this Chateau into a home media server by plugging in an additional SSD storage. Or you could use the USB to add an LTE modem for backup!

Advanced container setups, bonding, or high-speed 4x4 MIMO wireless setups – that’s where the Chateau PRO ax can really shine! Also, its increased number of radio transceivers provides significantly improved wireless coverage and beamforming performance.

Wi-Fi 6 AX3600

The router can transmit a Wi-Fi 6 wireless network, supporting IEEE 802.11 b/g/n/ax protocols in the 2.4 GHz band and IEEE 802.11 a/n/ac/ax in the 5 GHz band. The maximum theoretical throughput is 1148 Mb/s for 2.4 GHz and 2402 Mb/s for 5 GHz. The device uses 4x4 MIMO in both bands, which not only increases speed but also improves transmission quality when multiple users are connected simultaneously.

At the time of its release, the Chateau PRO ax is the most powerful device in the Wi-Fi 6 series, offering higher speeds than solutions like the hAP ax3 or hAP ax2. Additionally, the device stands out for its good transmission range. It is equipped with external omnidirectional antennas, providing 5 dBi gain in the 2.4 GHz band and 6 dBi in the 5 GHz band.

5 gigabit Ethernet ports, USB 3.0 port, PoE output

The offered product is equipped with 5 gigabit Ethernet ports (10/100/1000 Mb/s), with a PoE power output on the last port. The output voltage depends on the input supplied to the router, with a maximum current of 500 mA for inputs above 30 V or 600 mA for inputs below 30 V. This allows you to power other devices, such as an additional access point or a camera.

The use of the USB 3.0 port further expands the applications of the Chateau PRO ax. You can connect an external hard drive to create a file or media server. It is also possible to use an external USB LTE modem, which allows for additional data transmission capabilities.

Desktop-type enclosure, power supply: 18 - 57 V.

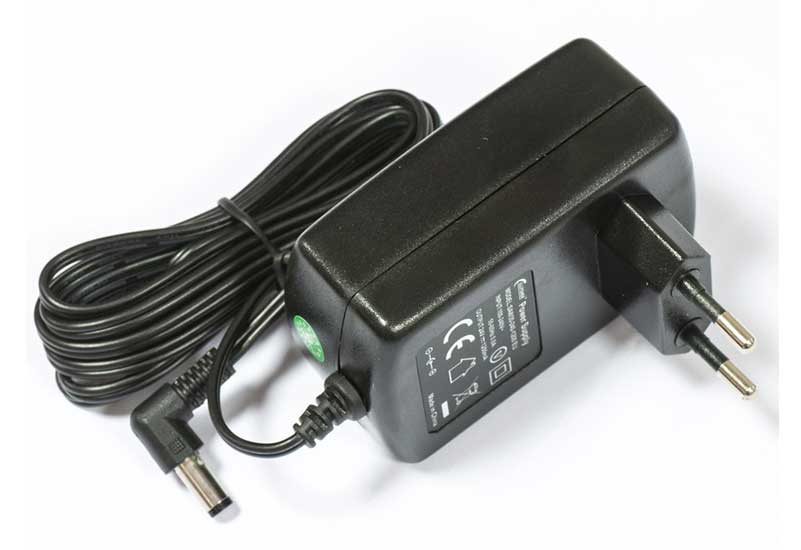

The Chateau PRO ax features a desktop-type enclosure, allowing you to place the device on a countertop or shelf. Power is supplied through a standard DC 2.1 / 5.5 socket, with a very wide input voltage range of 18 - 57 V DC. The package includes a 48 V / 1.35 A power supply, and the maximum power consumption is 55 W.

High performance, advanced management

The router features very high performance, equipped with a quad-core IPQ-8072A processor clocked at 2208 MHz and 1 GB of RAM. This allows for the creation of advanced configurations without concerns about performance drops. The device comes with the pre-installed RouterOS v7 operating system, with a Level 6 license—the highest available. The Chateau PRO ax is well-suited for smaller offices as a primary router, providing wireless transmission on one hand and high performance with extensive management capabilities on the other. This product will also be appreciated by any user looking to build their home lab.

Τεχνικα Χαρακτηριστικα

Specifications

Details
Product code H53UiG-5HaxQ2HaxQ
Architecture ARM 64bit
CPU IPQ-8072A
CPU core count 4
CPU nominal frequency 2208 MHz
Switch chip model IPQ-8072
RouterOS license 6
Operating System RouterOS v7
Size of RAM 1 GB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
IPsec hardware acceleration Yes
Suggested price $199.00


Wireless capabilities

Details
Wireless 2.4 GHz Max data rate 1148 Mbit/s
Wireless 2.4 GHz number of chains 4
Wireless 2.4 GHz standards 802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz 5
Wireless 2.4 GHz chip model QCN-5024
Wireless 2.4 GHz generation Wi-Fi 6
Wireless 5 GHz Max data rate 2400 Mbit/s
Wireless 5 GHz number of chains 4
Wireless 5 GHz standards 802.11a/n/ac/ax
Antenna gain dBi for 5 GHz 6
Wireless 5 GHz chip model QCN-5054
Wireless 5 GHz generation Wi-Fi 6
WiFi speed AX3600


Ethernet

Details
10/100/1000 Ethernet ports 5
Number of 1G Ethernet ports with PoE-out 1


Peripherals

Details
Number of USB ports 1
USB Power Reset Yes
USB slot type USB 3.0 type A
Max USB current (A) 1.5


Powering

Details
Number of DC inputs 1 (DC jack)
DC jack input Voltage 18-57 V
Max power consumption 55 W
Max power consumption without attachments 18 W
Cooling type Passive


PoE-out

Details
PoE-out ports Ether5
PoE out Passive PoE up to 57V
Low voltage PoE-Out current limit 600 mA
High voltage PoE-Out current limit 500 mA
Max total out (A) 0.600 A
Total output current 0.600
Total output power 22.8


Certification & Approvals

Details
Certification CE, FCC, IC, EAC, ROHS
IP 20


Other

Details
CPU temperature monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes
Mode button Yes
