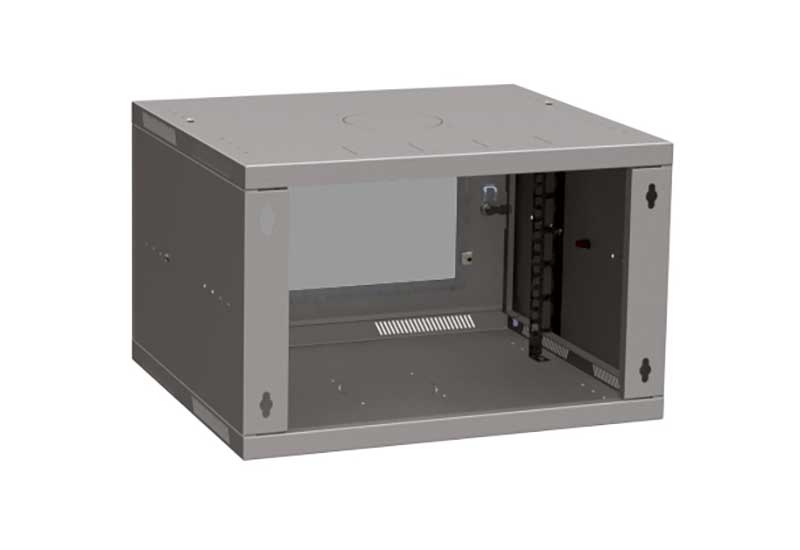

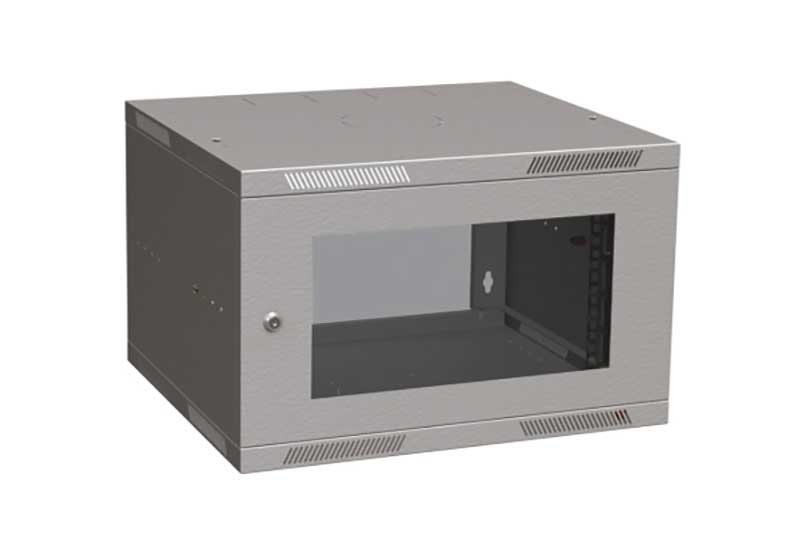

Solarix SENSA-L-6U-545-11-G Sensa Lite 6U Rack 19" cabinet 450mm glass doors (for self-assembly)

Διαθέσιμα: 1
Τιμή πώλησης 109,12 €
Τιμή πώλησης χωρίς φόρο 88,00 €
Ποσό Φ.Π.Α. 21,12 €
solarix-sensa-l-6u-545-11-g-s_1_800x550
solarix-sensa-l-6u-545-11-g-s_2_800x550
Περιγραφή

Solarix Sensa Lite is a series of Rack 19" cabinets. The offered product has a height of 9U and a depth of 45 cm. It is painted in gray RAL 7035, has glass doors. The cabinet is ready for self-assembly, making it perfect for shipping. - takes up little space and is not likely to be damaged. In the upper and lower part it has cable glands through which you can lead cables.

 SOL SENSA L 9U54511G desc 1

9U height, 45cm depth

The offered product has a height of 9U (490 mm), a standard width of 19" (exactly 520 mm) and a depth of 450 mm. It has a glass door equipped with a standard feather lock. The door can be mounted on the left or right side, the maximum opening angle is 180°.

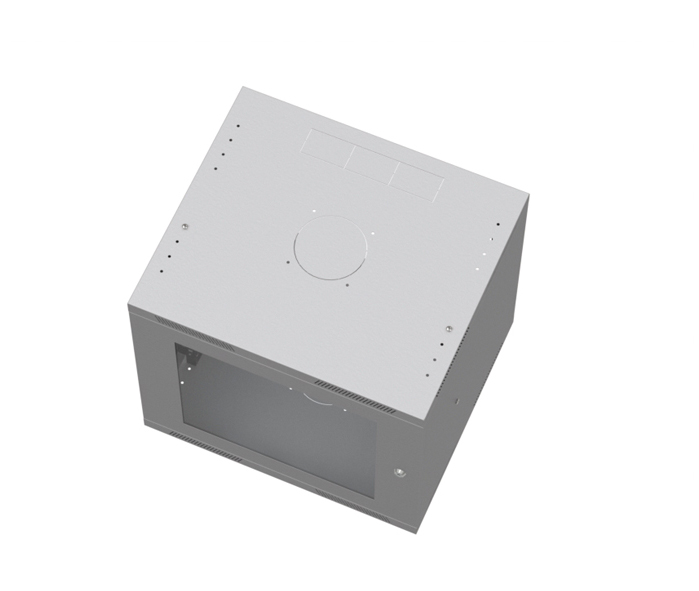

Cable glands, space for fans

In the upper and lower wall of the cabinet you will find cable entries and places for mounting fans. All holes are blinded, and you can remove the plugs as needed. In addition, the cabinet has perforations that help in proper air circulation. This is especially useful when using forced circulation.

 SOL SENSA L 9U54511G desc 2
 SOL SENSA L 9U54511G desc 3

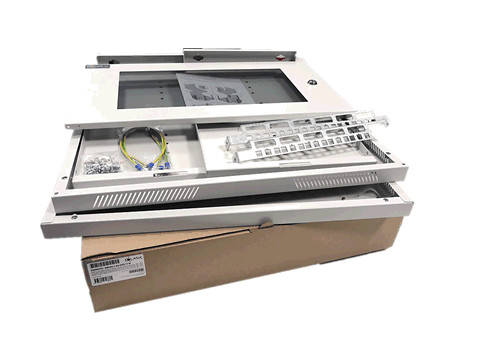

Cabinet for self-assembly

The product is for self-assembly, it has been packed in a small package. Thanks to this, it takes up little space during shipment, it is also much more resistant to possible transport damage.

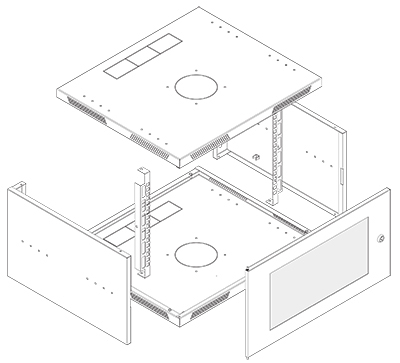

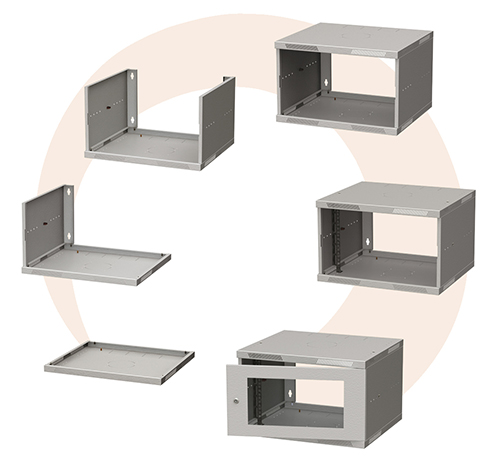

Simple assembly

The entire cabinet consists of only walls, doors and Rack rails. There are no additional components that require screwing, so the entire process takes little time - assembly takes only 5 simple steps. The set includes grounding cables that enable proper grounding of all elements.

 SOL SENSA L 9U54511G desc 4
 SOL SENSA L 9U54511G desc 5

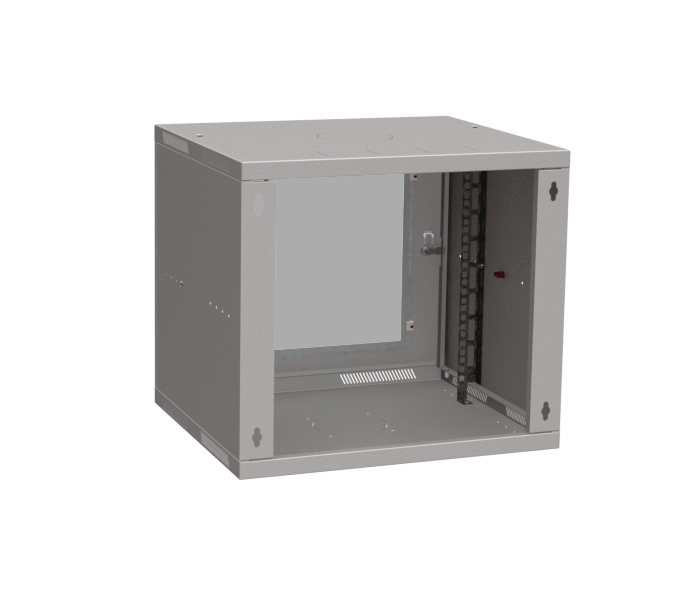

Wall mounting

Sensa Lite is suitable for wall mounting. There are 4 holes on the back which should be used to hang the cabinet. For this purpose, mounting pins must be used. The load capacity is 35 kg, so it is sufficient for the use of standard network devices.

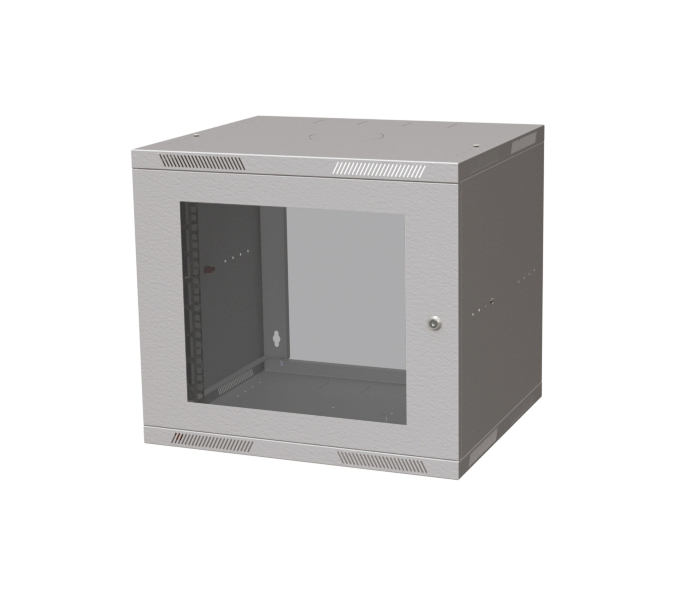

Glass doors, light gray colour

The cabinet is powder coated in light gray RAL 7035 and has a glass door. A toughened glass meeting the EN 12150-1 standard was used. The ingress protection is IP20, the product cannot be used outdoors.

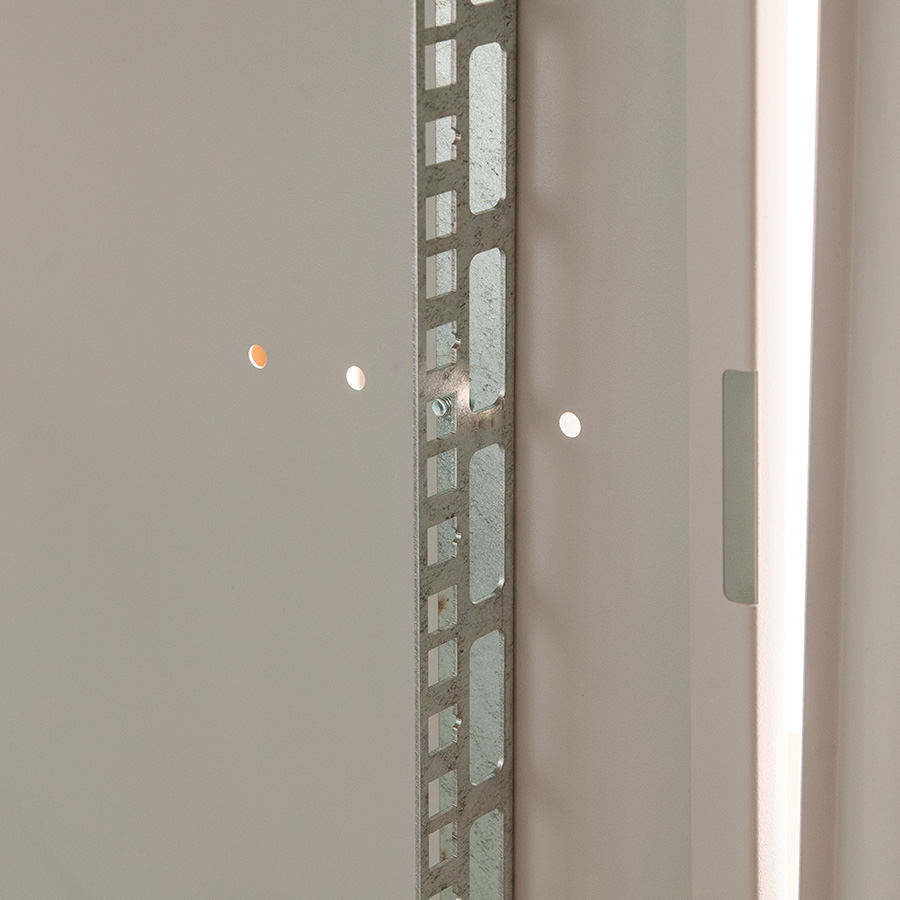

rack4

Rack rails adjustment

You can adjust the depth of the Rack rails. The cabinet has 4 depth levels, spaced every 30 mm. Thanks to this, if you want to mount a device with a small housing, you can move the Rack rails deeper so that in the future you will have more space for cables.



Τεχνικα Χαρακτηριστικα

Specifications

Sensa Lite 9U
  Colour   Light gray RAL 7035
  Doors   Glass
  Height   6U / 356 mm
  Width   520 mm
  Depth   450 mm
  Weight   5 kg
