Stalflex RC19-12U-450GG Rack 19" cabinet 12U 450mm Glass Gray (wall mounting)

Διαθέσιμα: 1
Τιμή πώλησης 111,60 €
Τιμή πώλησης χωρίς φόρο 90,00 €
Ποσό Φ.Π.Α. 21,60 €
stalflex-rc19-12u-450gg_1_800x550
stalflex-rc19-12u-450gg_2_800x550
stalflex-rc19-12u-450gg_3_800x550
stalflex-rc19-12u-450gg_4_800x550
stalflex-rc19-12u-450gg_6_800x550
stalflex-rc19-12u-450gg_5_800x550
stalflex-rc19-12u-450gg_7_800x550
Περιγραφή

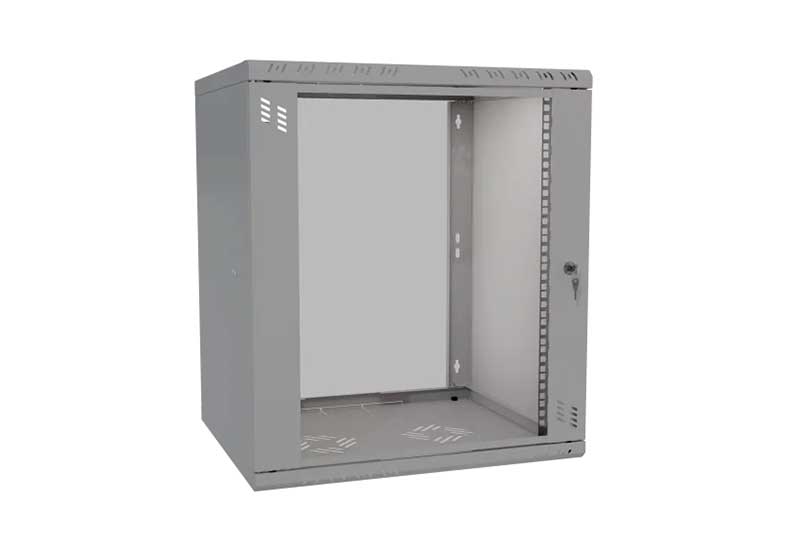

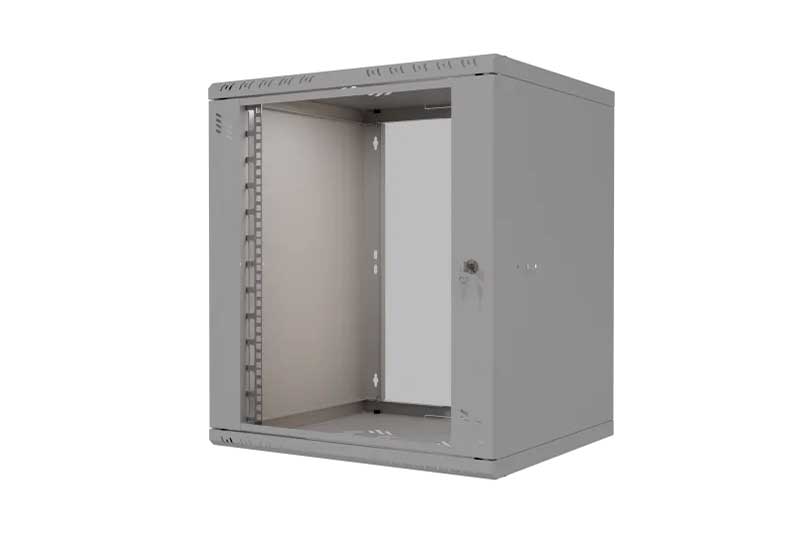

Stalflex RC19-12U-450GG is a 19" rack cabinet designed for wall mounting. Its height is 12U, and the depth is 450 mm. The doors are equipped with glass. The product is made of DC01 steel sheet powder-coated in light gray RAL 7035. The cabinet is intended for self-assembly, and it is packaged in a compact box, ensuring safe transport.

In the top and bottom sections, there are three cable entry points (to be punched) with dimensions of 80 x 50 mm. Adjacent to them are mounting locations for a fan (screw spacing 105 x 105 mm, diameter 120 mm). The Rack rails can be adjusted in 30 mm increments. The cabinet has multiple ventilation holes to ensure optimal airflow. The product is designed for wall mounting using expansion plugs (not included in the set).

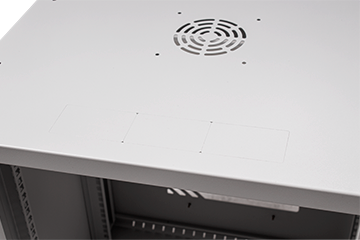

Cable Passages

In the lower and upper parts of the cabinet, there are three cable passages, each measuring 50 x 80 mm. The holes are sealed, and to use them, you must first knock out the seals.

You can conveniently route cables into the cabinet, regardless of which side the cables are coming from. The cabinet is ideal for vertical installations, where cables enter from the bottom and exit from the top.




 SF RC19 GG desc 2

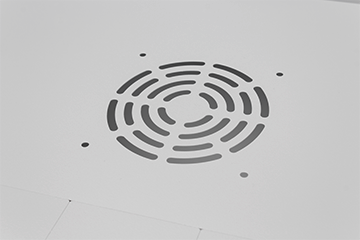

Fan Installation Option

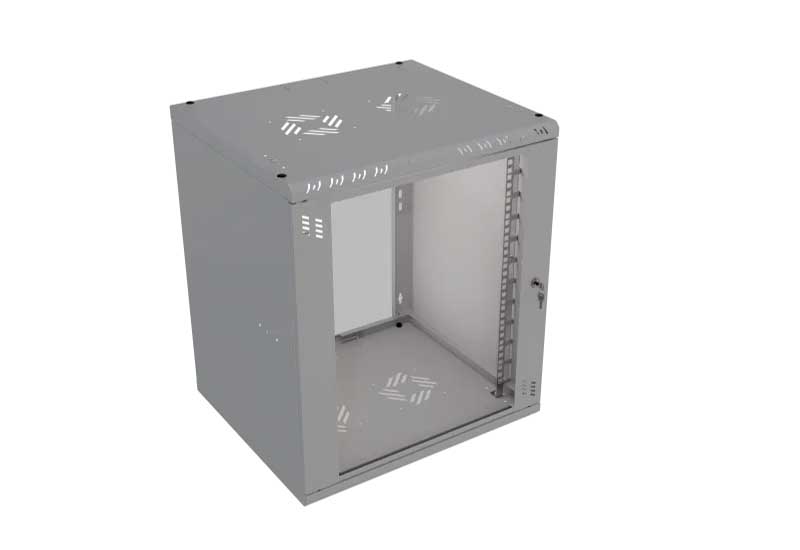

The offered product also has space in the upper and lower parts for installing two 120 x 120 mm fans. The screw spacing is 105 x 105 mm.

Using additional fans and creating forced air circulation in the cabinet lowers the temperature, thus extending the lifespan of the installed devices. In certain locations, using forced air circulation is even essential (e.g., in an attic where high temperatures may occur).

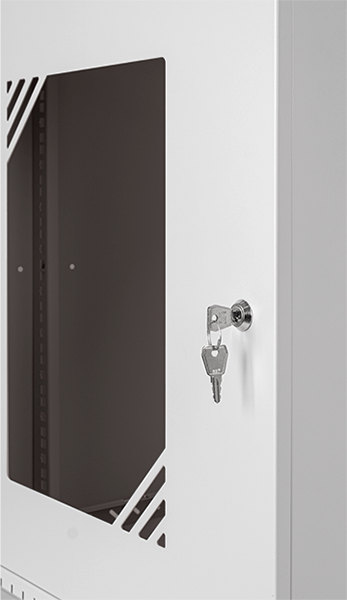

Glass Door with Cam Lock

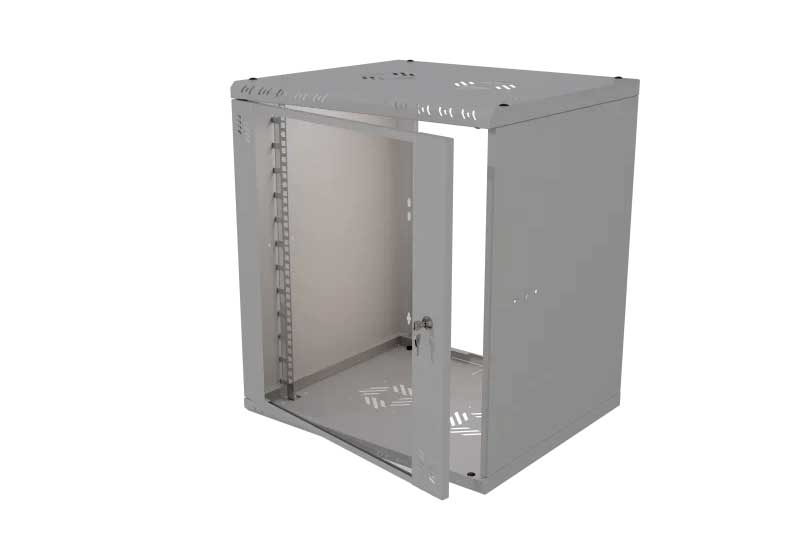

The cabinet is equipped with glass doors that can be mounted on either the left or right side, depending on your needs. They open at a 90° angle, which greatly facilitates access to the installed devices.

The doors are equipped with a feather lock, and the set includes two sets of keys.

 SF RC19 GG desc 3
 SF RC19 GG desc 4

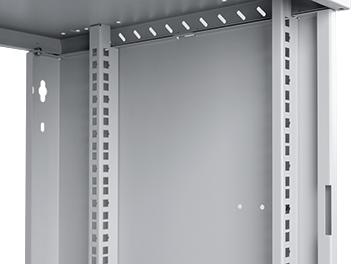

Rack Rail Adjustment

The Rack rails can be installed in one of three dedicated positions. There is a 30 mm gap between them. If necessary, you can leave more space at the front to have better access to the connected cables.

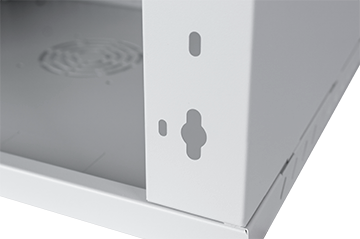

Wall Mounting

The cabinet is designed for wall mounting using expansion plugs (not included in the set). There are only mounting holes on the back; there is no additional wall.

SF RC19 GG desc 5

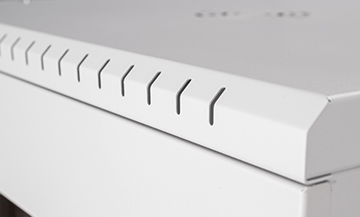

Additional Ventilation Holes

Special ventilation holes are located on the sides and at the front of the lower and upper parts of the cabinet. They ensure proper air circulation, which is crucial if you are using active cooling.

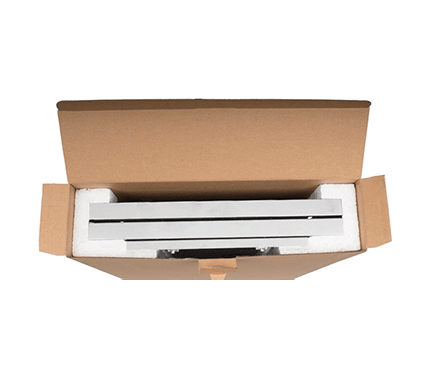

Easy Assembly, Safe Delivery

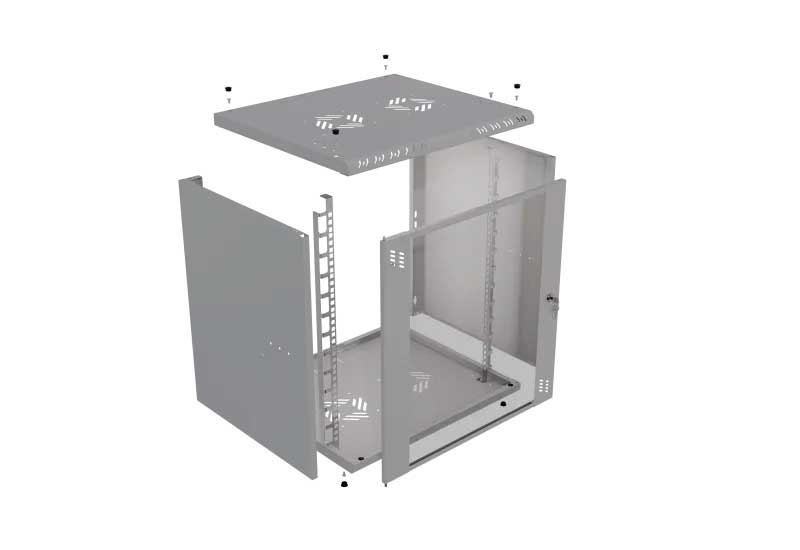

The product is intended for self-assembly. The package includes detailed instructions, and the assembly process is quick and simple.

This packaging method makes the product easier to transport and additionally protects it from damage.

SF RC19 GG desc 7

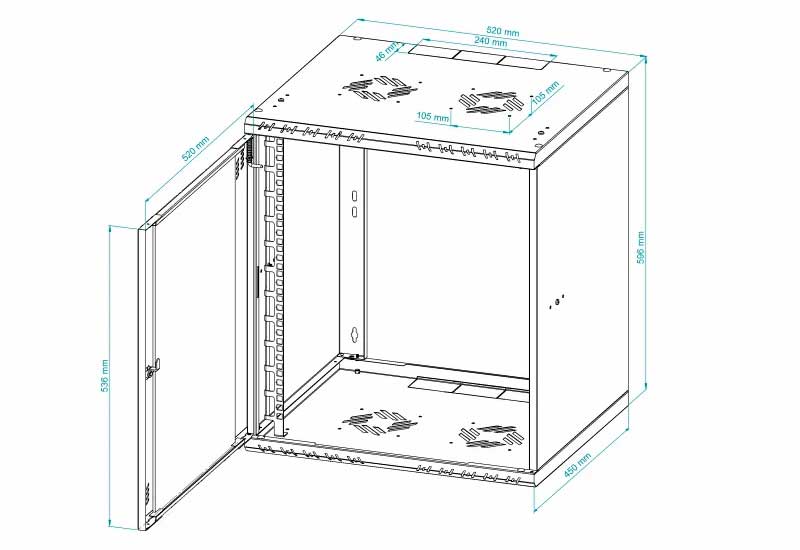

Τεχνικα Χαρακτηριστικα

 Stalflex S-RC19-12U-450GG
  Standard   Rack 19"
  Colour   Light gray RAL 7035
  Door Typ   Glass-paneled
  Height   12U / 356 mm
  Width   520 mm
  Depth   450 mm
  Material    DC01 steel sheet; DX51D + Z250
  Sheet Thickness    0,6 mm; 1,5 mm

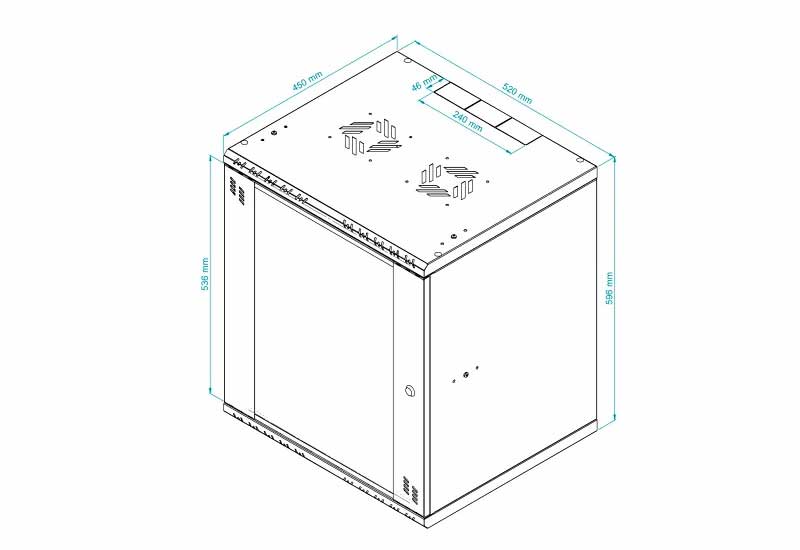

  External Dimensions    520 x 450 x 596 mm
  Net Weight   9,4 kg
  Application    Indoor use
  Load Capacity    55 kg
