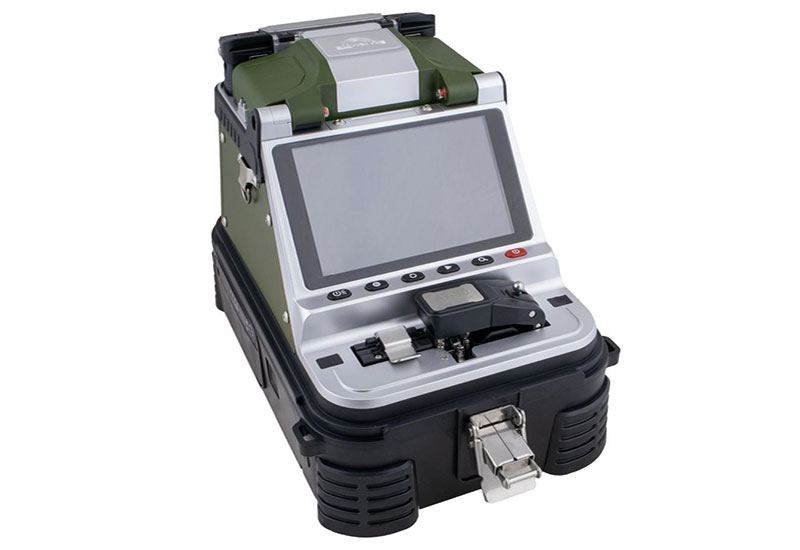

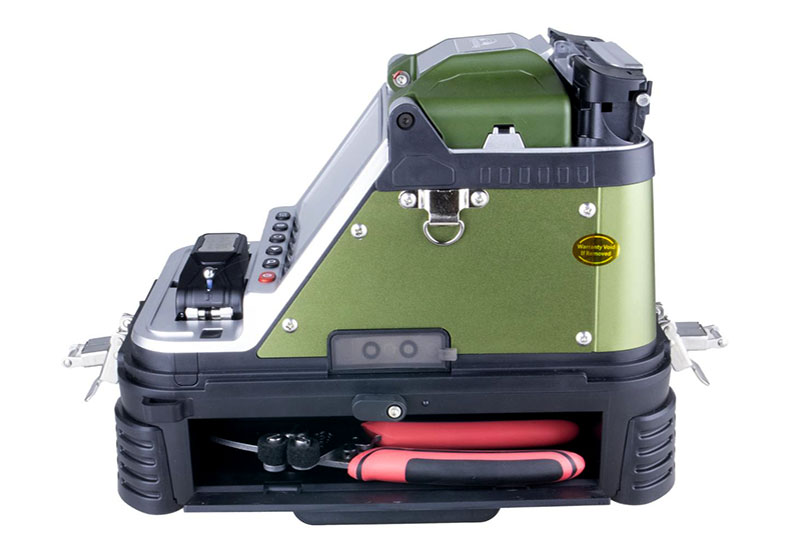

Opton Signal Fire AI-30 Arc Fusion Splicer (built-in cleaver, VFL and OPM)

Splicer with Built-in Optical Power Meter and Visual Fault Locator!
Τιμή πώλησης 1308,20 €
Τιμή πώλησης χωρίς φόρο 1055,00 €
Ποσό Φ.Π.Α. 253,20 €
opton-signal-fire-ai-30_1
opton-signal-fire-ai-30_3
opton-signal-fire-ai-30_2
opton-signal-fire-ai-30_4
opton-signal-fire-ai-30_5
opton-signal-fire-ai-30_6
Περιγραφή

The Opton Signal Fire AI-30 is a fiber optic splicer designed for splicing Singlemode, Multimode, DSF, NZ-DSF, and BIF optical fibers. It supports core alignment and uses 6 motors for precise fiber positioning. The set includes universal holders that can be used for splicing pigtails, drop cables, and bare fibers. The manufacturer implemented an automatic oven that, once the cover is closed, immediately begins the heat-shrinking process. The splicing time is approximately 6 seconds, and the heat-shrinking time is 15 seconds, giving a total cycle time of 21 seconds. The splicer features a 5" color display and offers 320x image magnification. Basic operations are performed using physical buttons located below the display, while more advanced functions are accessible through a mobile device application.

The offered product includes an integrated fiber optic cutter. This allows you to immediately place the fiber into the holder with a short movement after cutting. Additional features include a built-in optical power meter and a visual fault locator. The power meter measures transmitted power over a given segment and supports wavelength measurements of 850, 1300, 1310, 1490, 1550, and 1625 nm. The visual fault locator allows you to inspect fiber damage over a short segment (15 mW power). The set also includes essential accessories: a 7800 mAh battery with charger, extra electrodes, an advanced stripper, a brush, and an alcohol dispenser. Everything is housed in a convenient case, to which you can optionally attach a strap.

Product Description

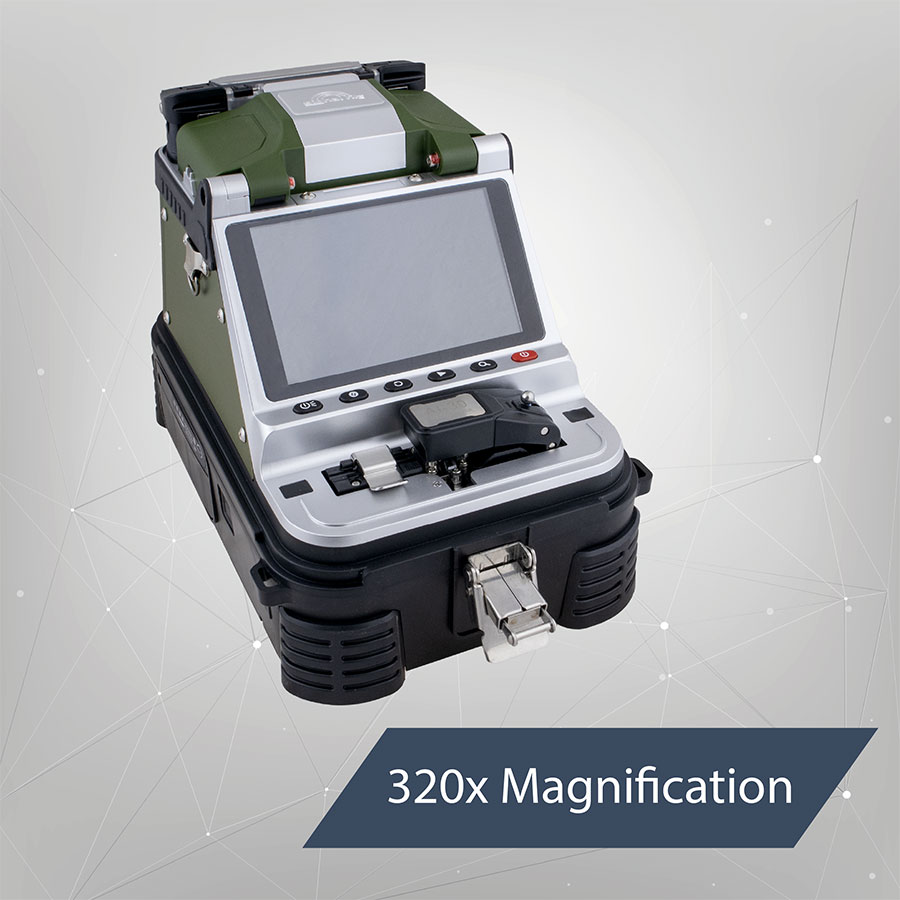

Fiber Optic Splicer, 320x Magnification, Core Alignment

 The offered product is designed for splicing optical fibers using an electric arc method and is compatible with Singlemode,   Multimode, DSF, NZ-DSF, and BIF fibers. It provides core alignment, with positioning handled by 6 motors, achieving a   positioning accuracy of 0.05 μm. The device offers 320x image magnification when displaying either the X or Y axis, and 200x   magnification when displaying both axes simultaneously.

OP SIGNAL FIRE AI 30 desc 1
OP SIGNAL FIRE AI 30 desc 2

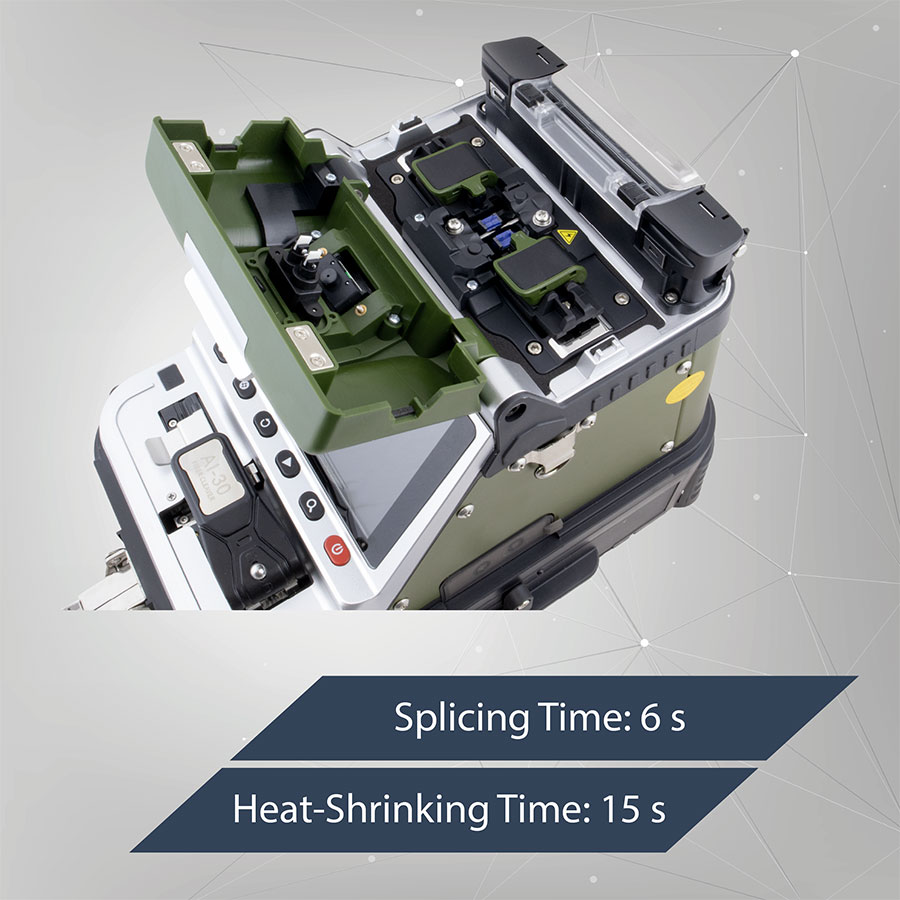

Splicing Time 6 s, Heat-Shrinking Time 15 s

 The splicing time is approximately 6 seconds, and the heat-shrinking time of the protective sleeve is 16 seconds.   This gives a total cycle time of around 22 seconds, which is an excellent result, fully sufficient for most tasks. The   oven operates automatically—once the splice is placed inside and the cover is closed, it begins working without the   need to press any buttons.

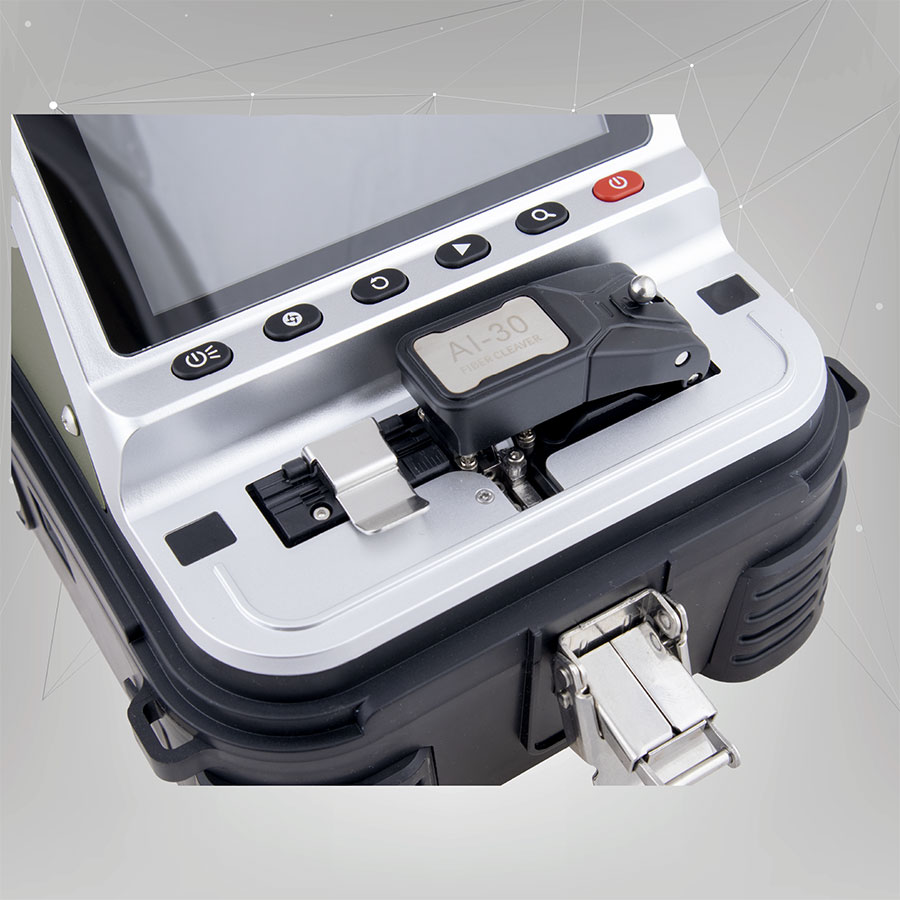

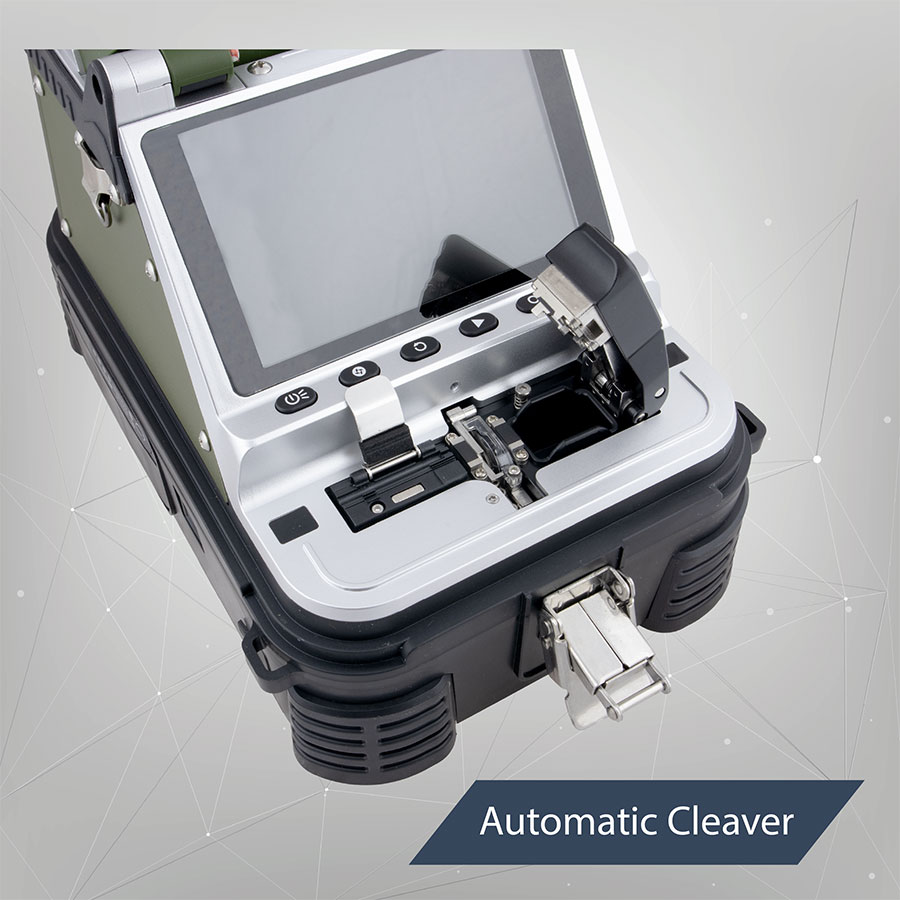

Built-in Automatic Cleaver

 The splicer’s body includes a built-in cleaver for cutting optical fibers. It operates fully automatically: pressing down the cover   performs the cut, and opening the cover returns the cleaver to its starting position. The integrated cleaver significantly   increases  user convenience, allowing you to immediately place the prepared and cut fiber into the holder, which is located   within close reach.

OP SIGNAL FIRE AI 30 desc 3
OP SIGNAL FIRE AI 30 desc 4

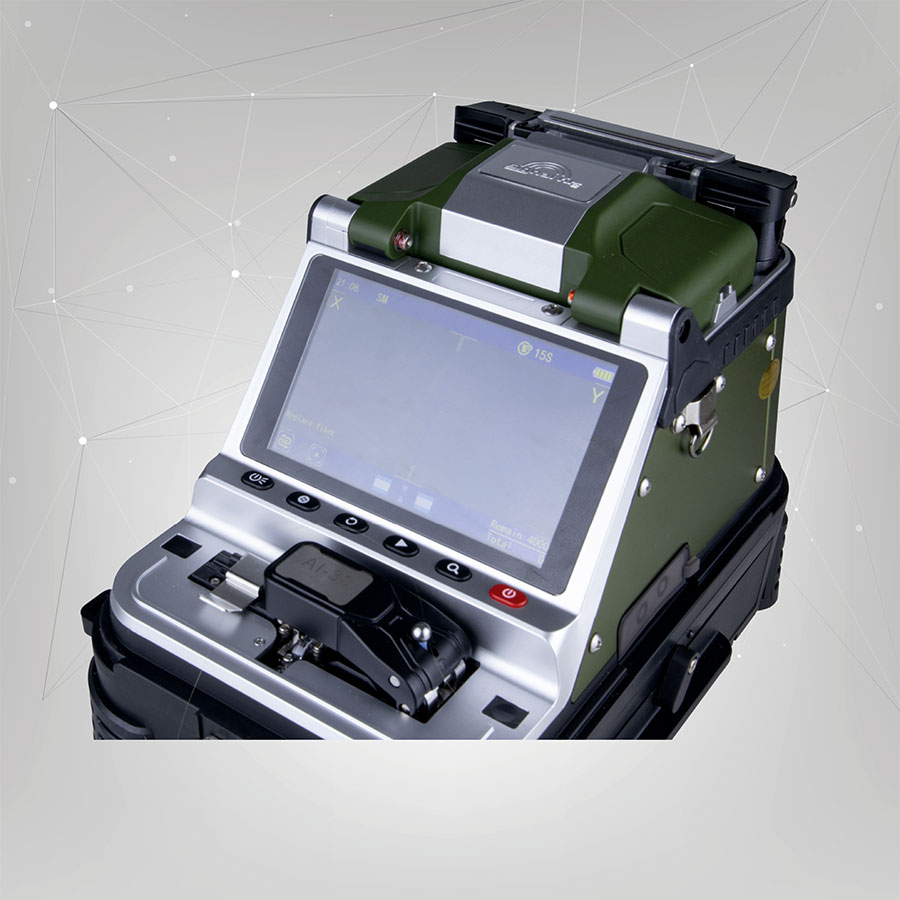

5" Color Display, Easy Operation

 The splicer features a 5" TFT color display. Basic functions are operated using physical buttons located just below   the screen. Advanced functions and configuration are accessible only through a mobile application for Android/iOS   devices. Thanks to the large physical buttons, starting the splicing mode is quick and easy, even while wearing work   gloves.

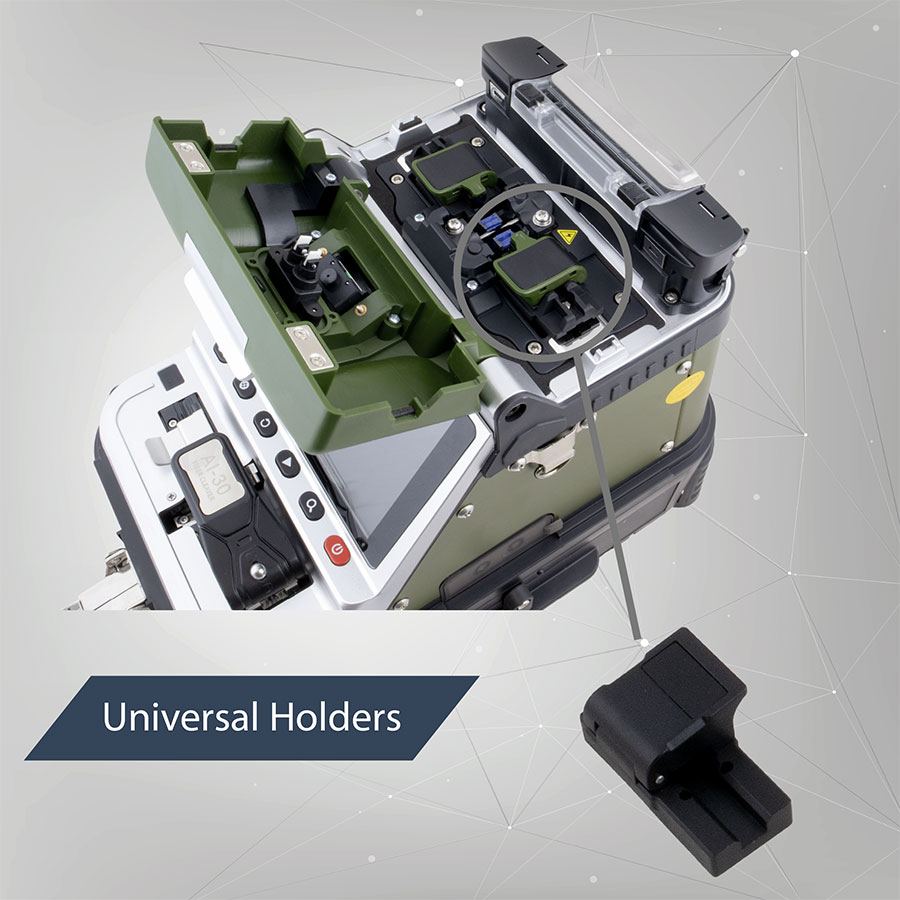

Universal Holders

 The device comes with universal holders that can be used for splicing bare fibers of various sizes and diameters, pigtails, and   drop cables. Additionally, the set includes a holder that allows splicing SOC-type connectors.

OP SIGNAL FIRE AI 30 desc 5
OP SIGNAL FIRE AI 30 desc 6

Built-in Optical Power Meter and Visual Fault Locator

 The AI-30 features a built-in optical power meter and a visual fault locator. The connectors are located on the side   of the housing, in an easily accessible position. The power meter supports wavelengths of 850, 1300, 1310, 1490,   1550, and 1625 nm, enabling basic diagnostics after splicing. The visual fault locator has a power of 15 mW and   allows you to check fiber continuity over a short distance.

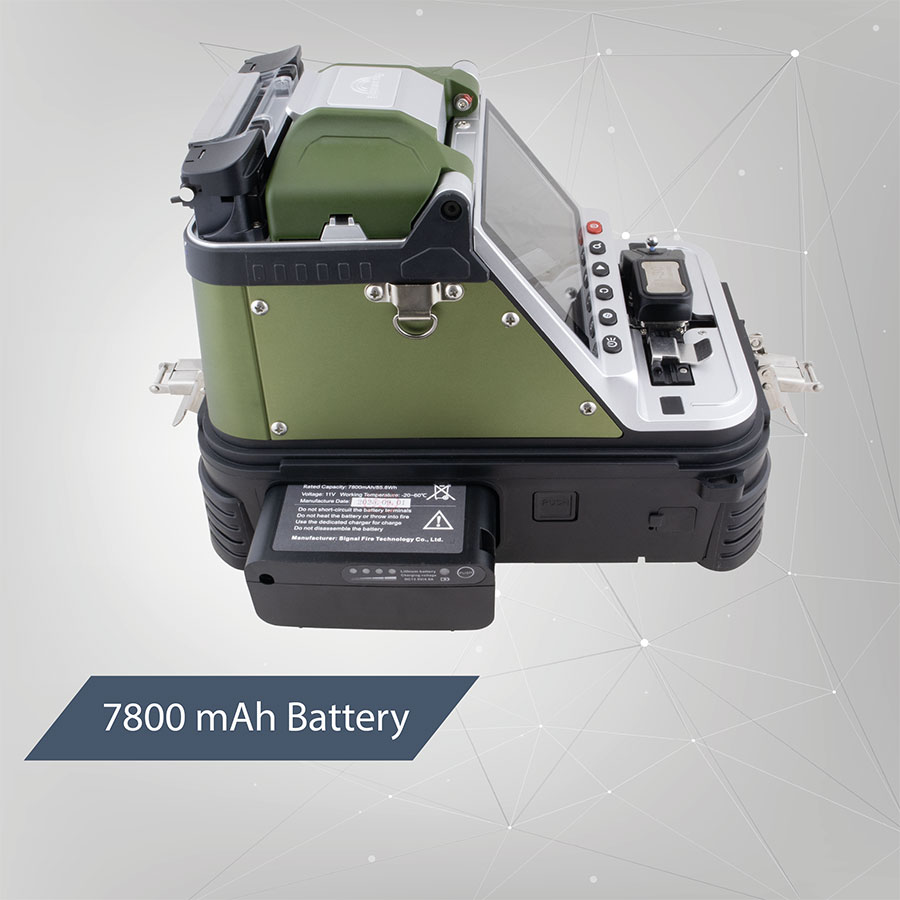

7800 mAh Battery

 The set includes a 7800 mAh lithium-ion battery, which, according to the manufacturer, is sufficient for approximately 340   splicing and heat-shrinking cycles. The full charging time is a maximum of 3.5 hours. The battery features a built-in DC port,   allowing it to be charged outside the device. The splicer also has its own independent DC port.

OP SIGNAL FIRE AI 30 desc 7
OP SIGNAL FIRE AI 30 desc 8

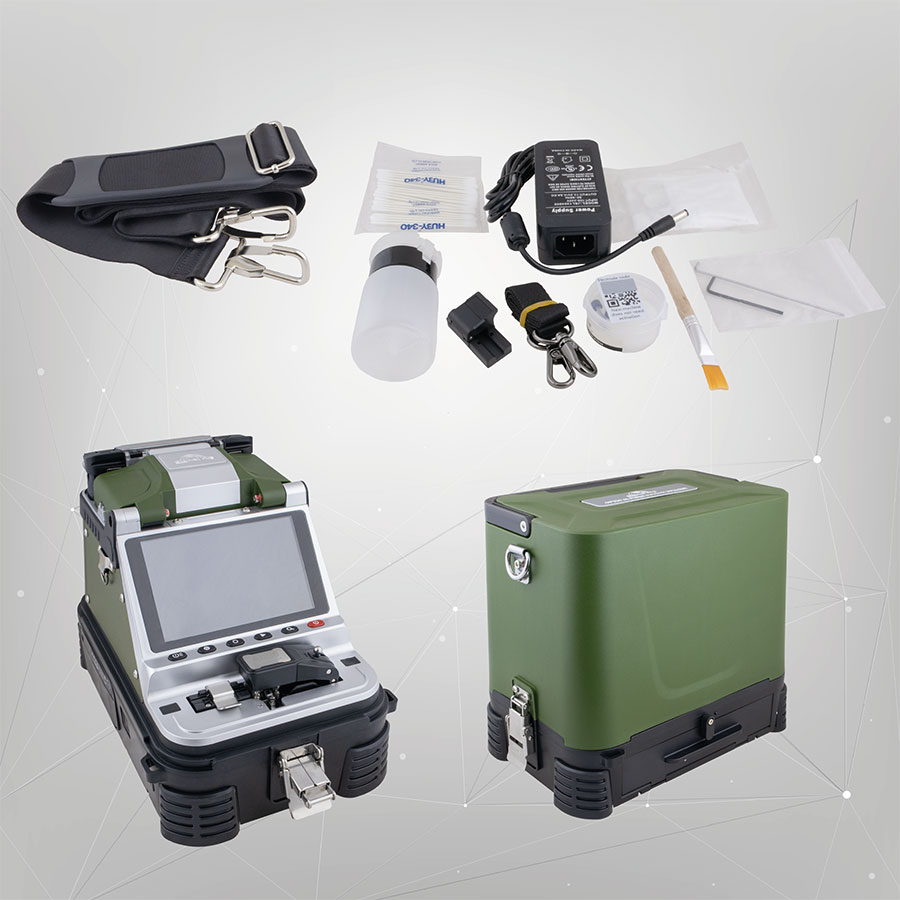

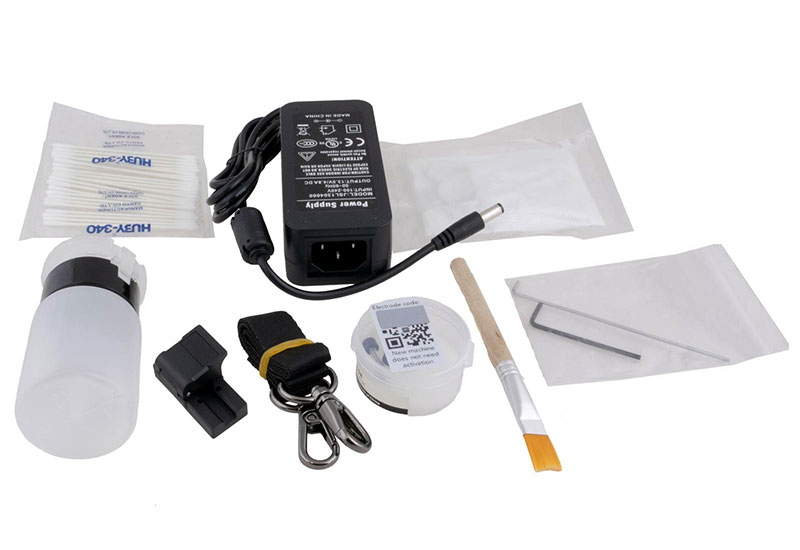

Package Contents

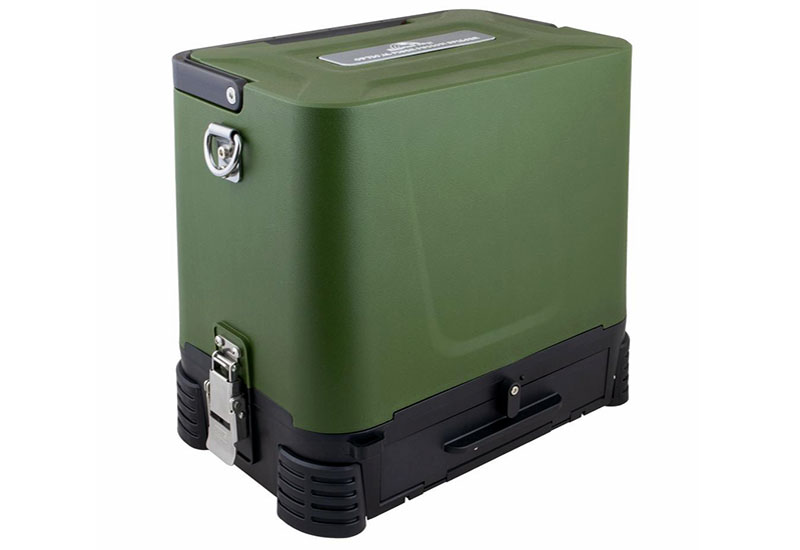

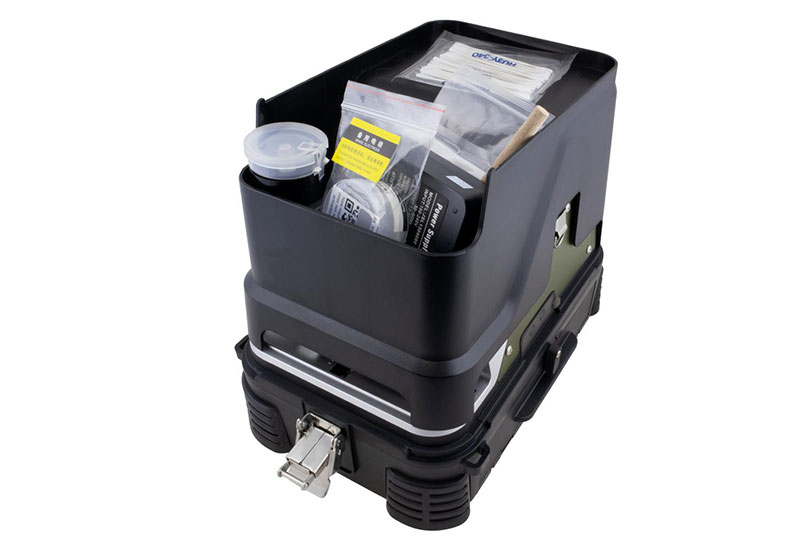

 The offered product, along with its accessories, comes in a convenient plastic case. The set includes:

  • AI-30 splicer
  • Battery
  • Power supply
  • Universal three-eye stripper
  • SOC holder
  • Spare electrodes
  • Brush
  • Alcohol dispenser
  • Case
Τεχνικα Χαρακτηριστικα

Opton Signal Fire AI-30
Fiber Centering Core or cladding
Number of Motors 6, fiber positioning accuracy up to 0.05 μm
Splicing Time 6 s
Heating Time 15 s, adjustable depending on environmental conditions
Supported Fiber Types

Singlemode (SM)

Multimode (MM)

Dispersion-shifted fiber (DSF)

Non-zero dispersion-shifted (NZ-DSF)

Bend-insensitive fiber (BIF)

Cladding Diameter Range 80 - 150 μm
Average Splice Loss

0.02 dB (SM)

0.01 dB (MM)

0.04 dB (DS/NZDS)

Splicing Modes Automatic, Semi-automatic
Holder 3-in-1: for pigtails, drop cables, and bare fibers
Fiber Cleaver High-quality cleaver with automatic return to starting position
Visual Fault Locator 15 mW power
Optical Power Meter

Wavelengths: 850, 1300, 1310, 1490, 1550, 1625, 980, 1270, 1577, 1650 nm

Measurement range: -50 ~ 30 dBm

Battery

7800 mAh capacity

Charging time < 3.5 h

Supports ~240 splicing/heating cycles

Image Magnification

320x (X or Y axis)

200x (X and Y axes simultaneously)

Recommended Fiber Length

Diameter ≤250 μm: 8–16 mm

Diameter 250–1000 μm: 16 mm

Compatible Splice Protectors 25, 40, 50, 60 mm
Display 5" TFT, color
External Fiber Light Can connect an LED lamp via USB port (lamp not included)
Mobile Device Charging USB port can be used to charge a mobile device
Power-On Time 1 s
Maximum Number of Stored Splices 1000
Wireless Communication Bluetooth 4.2
Firmware Update Via mobile app; Bluetooth synchronization required
Return Loss < 60 dB
Device Protection Waterproof, dustproof, and shockproof
Power Supply

Input: 100–240 V AC, 50/60 Hz

Output: 13.5 V DC / 4.8 A

Operating Temperature -15°C to 50°C
Operating Humidity <95% RH, non-condensing
